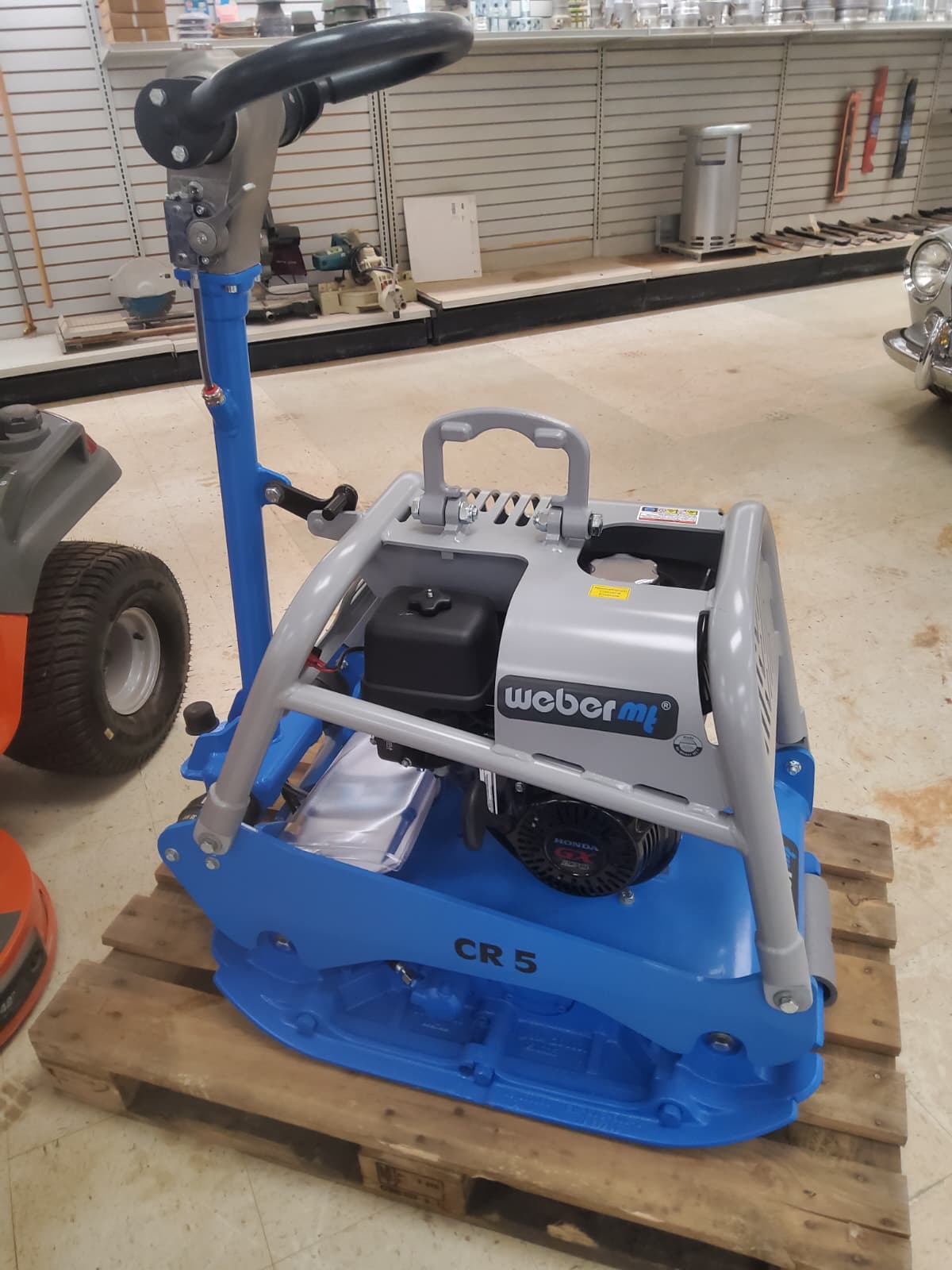

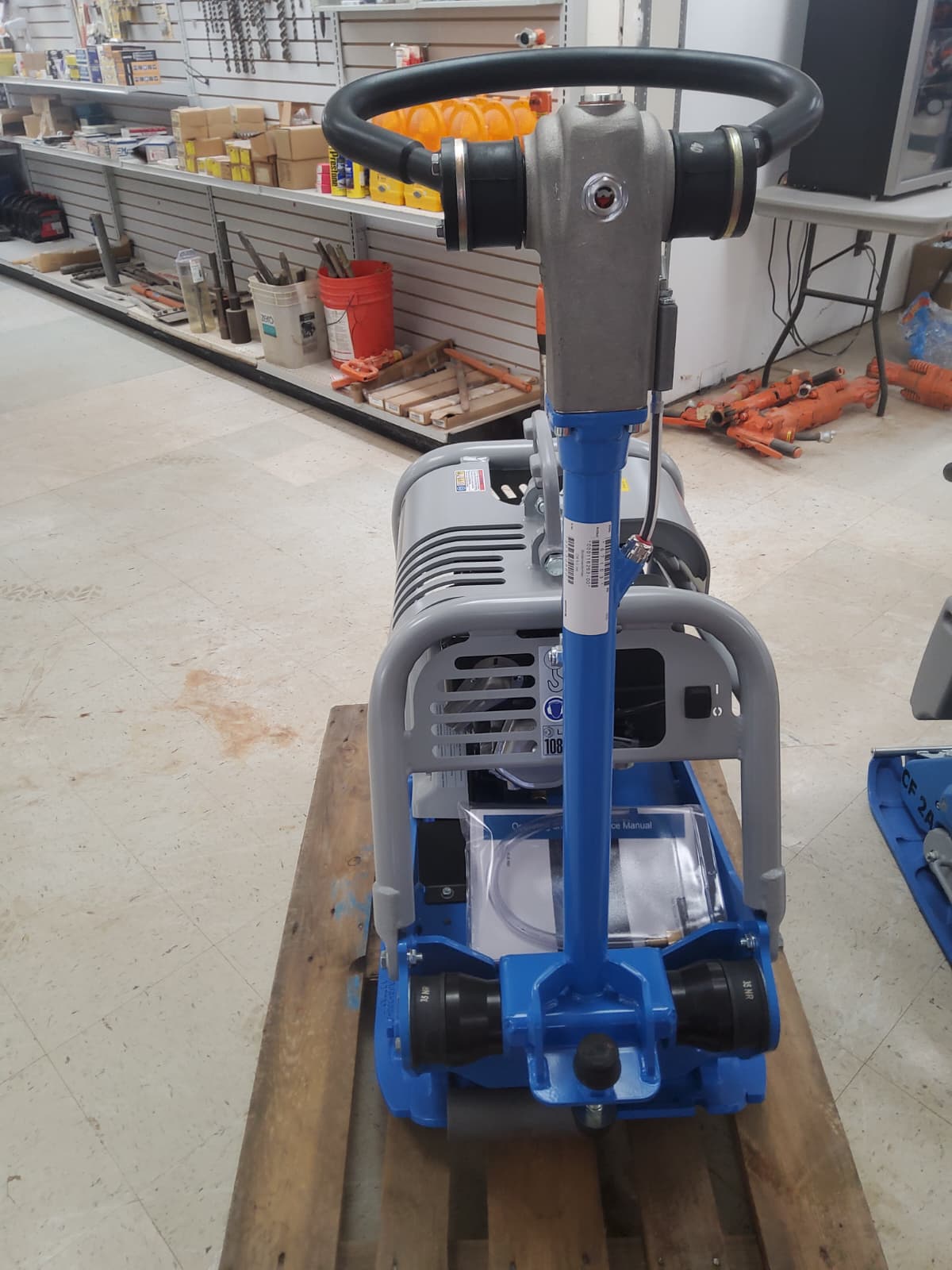

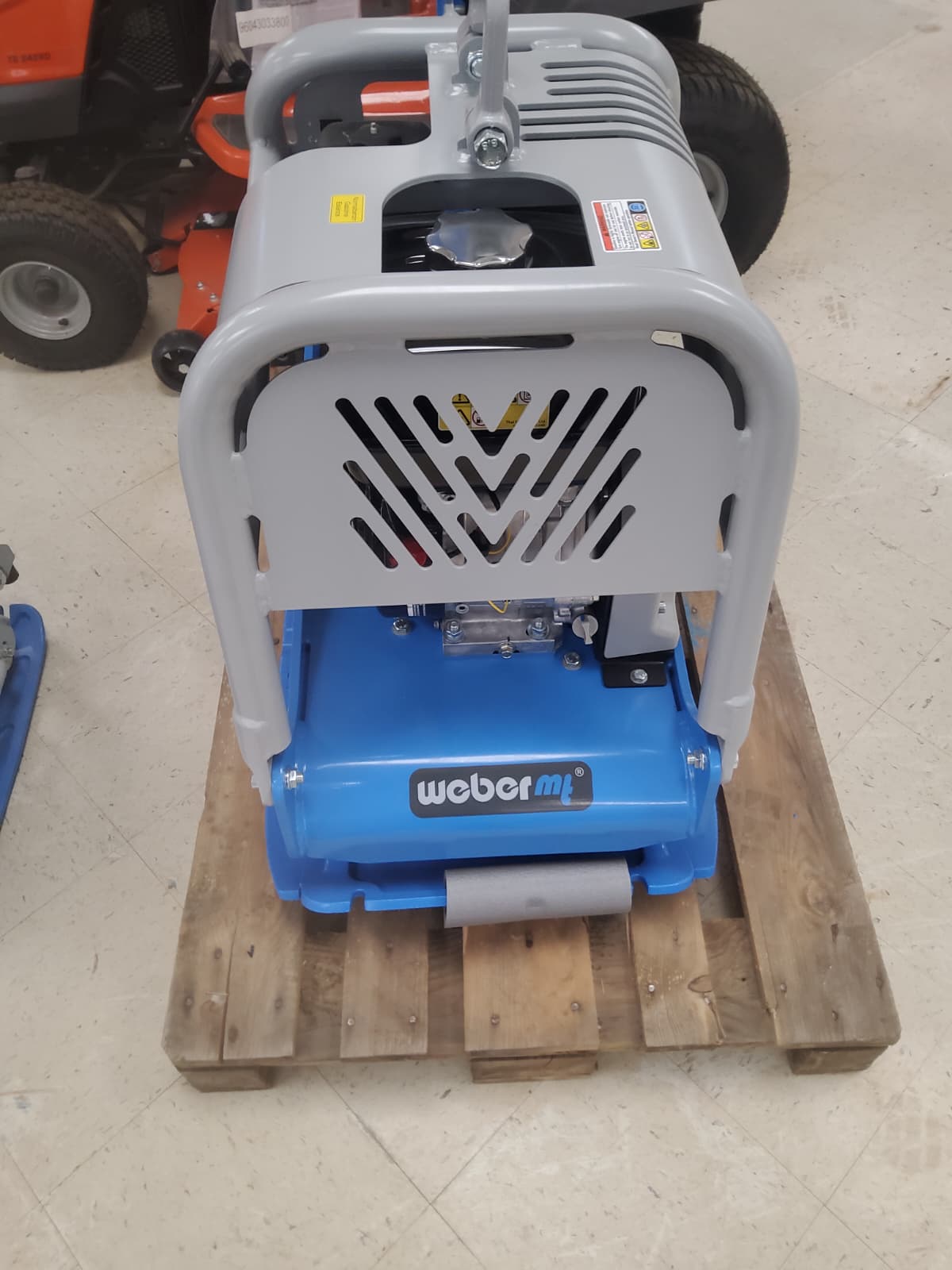

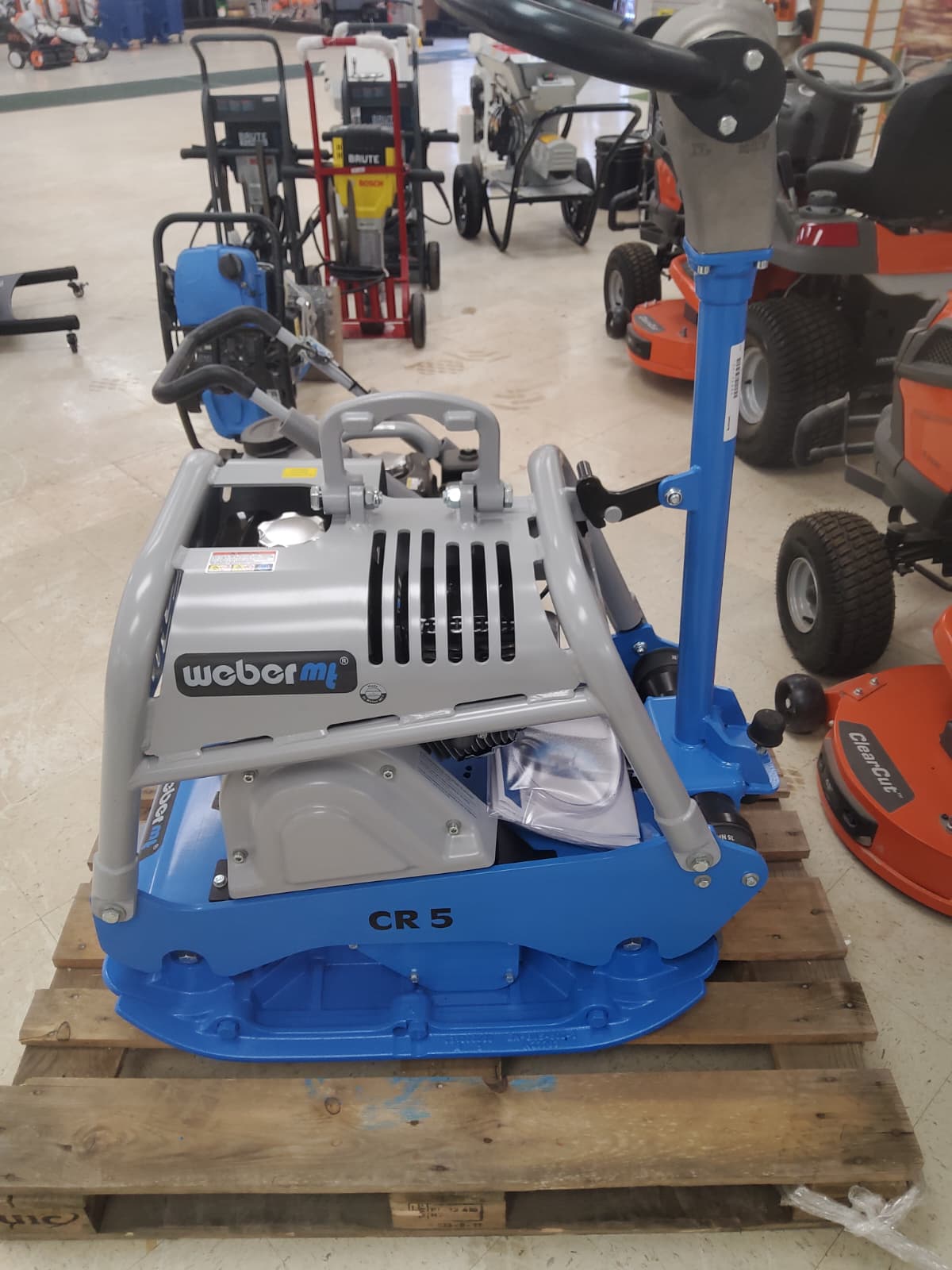

2025 Weber CR5-II HD Reversible Plate Compactor

Thanks to their smoothness of operation, their vibrating characteristics and their rugged and reliable design, the reversible soil compactor CR 5 translates this concept into optimum compaction results.

Hand-guided, reversible soil compactor. The machine is composed of a bottom and a top section. The bottom section houses the exciter, while the top section contains the engine and the required controls. An air-cooled Honda gasoline engine makes the exciter vibrate via a centrifugal clutch. The generated force is transmitted between top and bottom section via a V-belt. The engine speed is adjusted between idle speed and full throttle speed via a gas lever. Forward and reverse travel is variably controlled with a handle via a hydraulic system.

Designed exclusively for compacting:

Sand, Gravel, Crushed Rock, Low-cohesive mixed material, Paved surfaces
