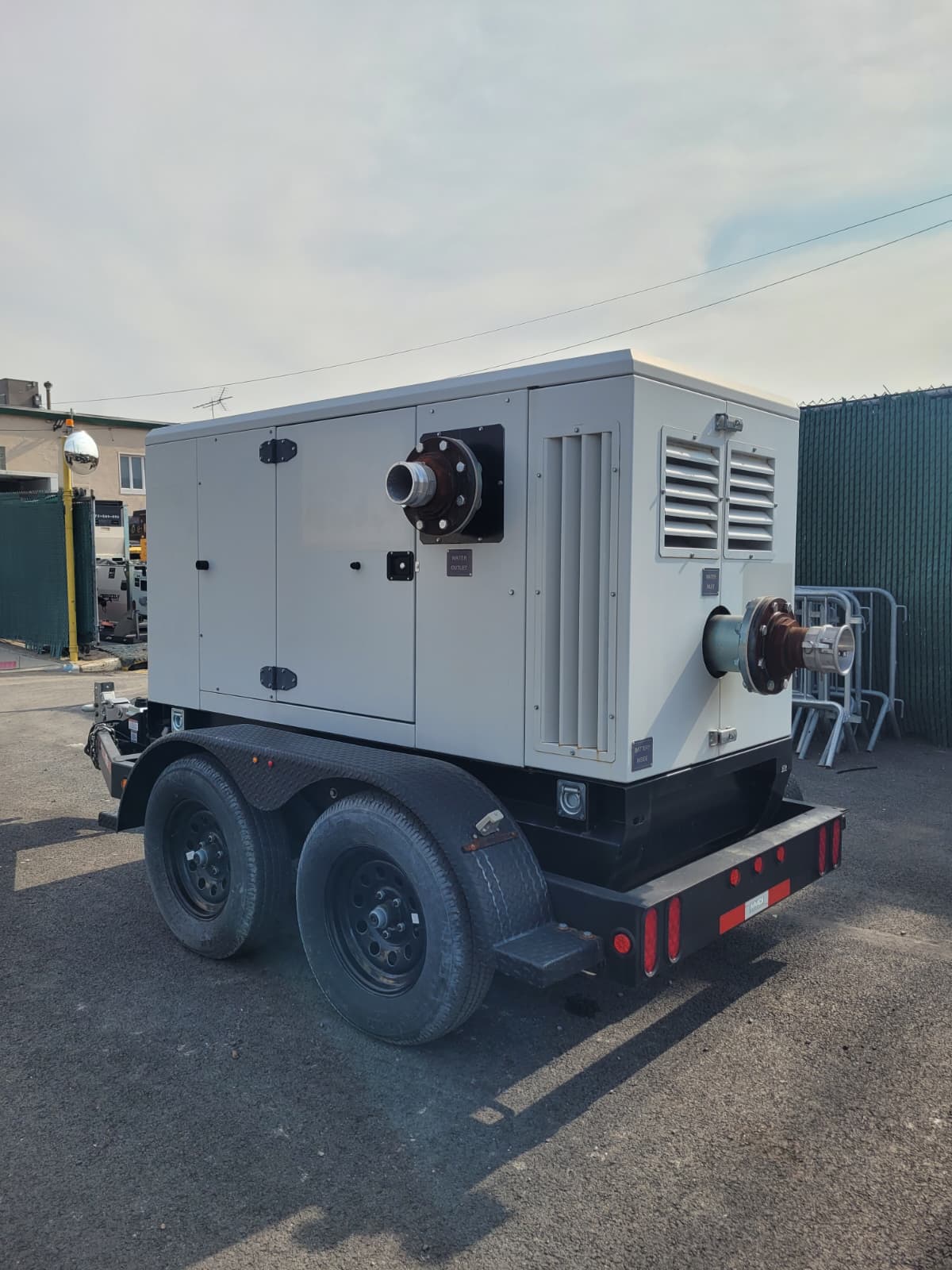

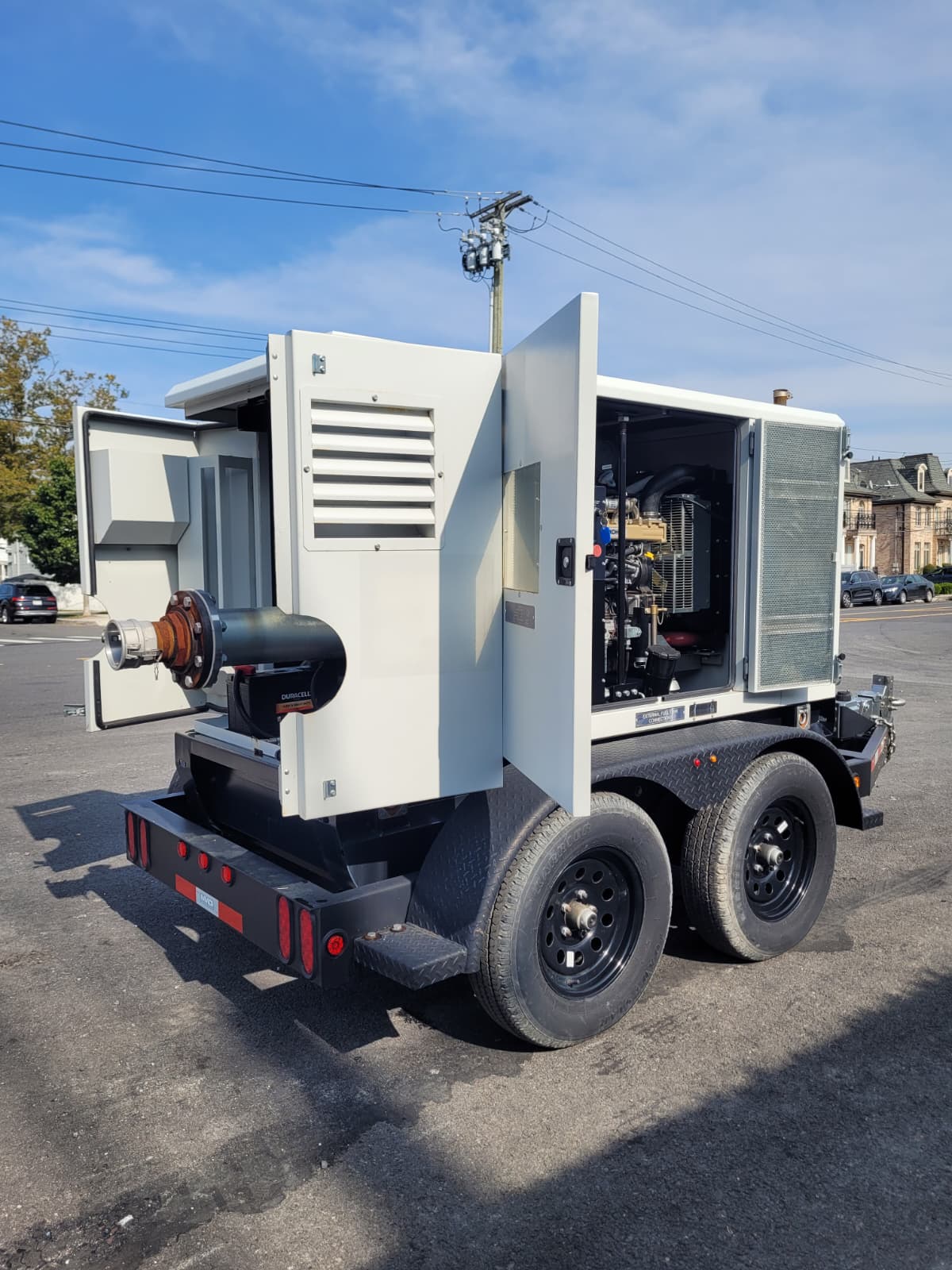

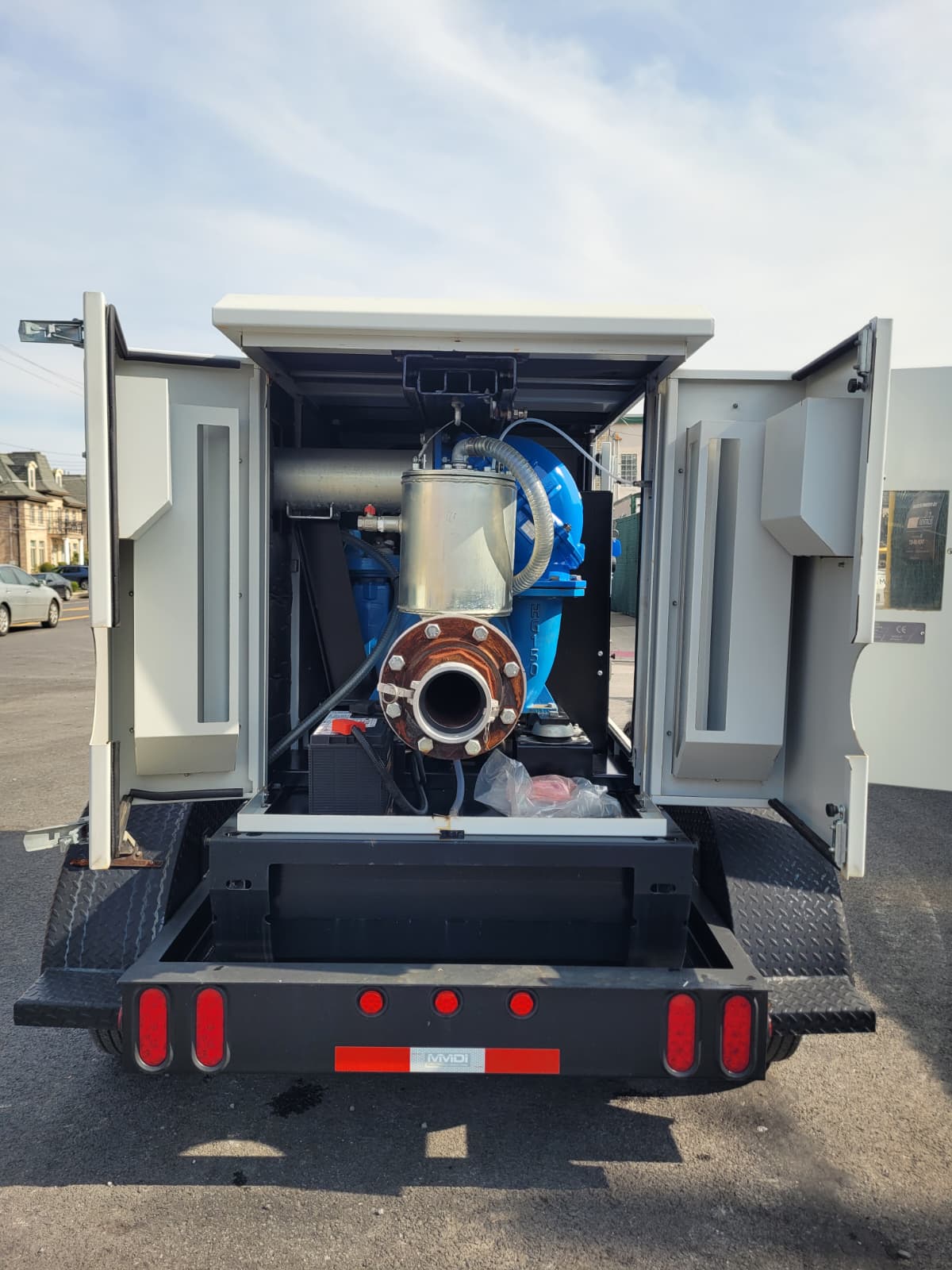

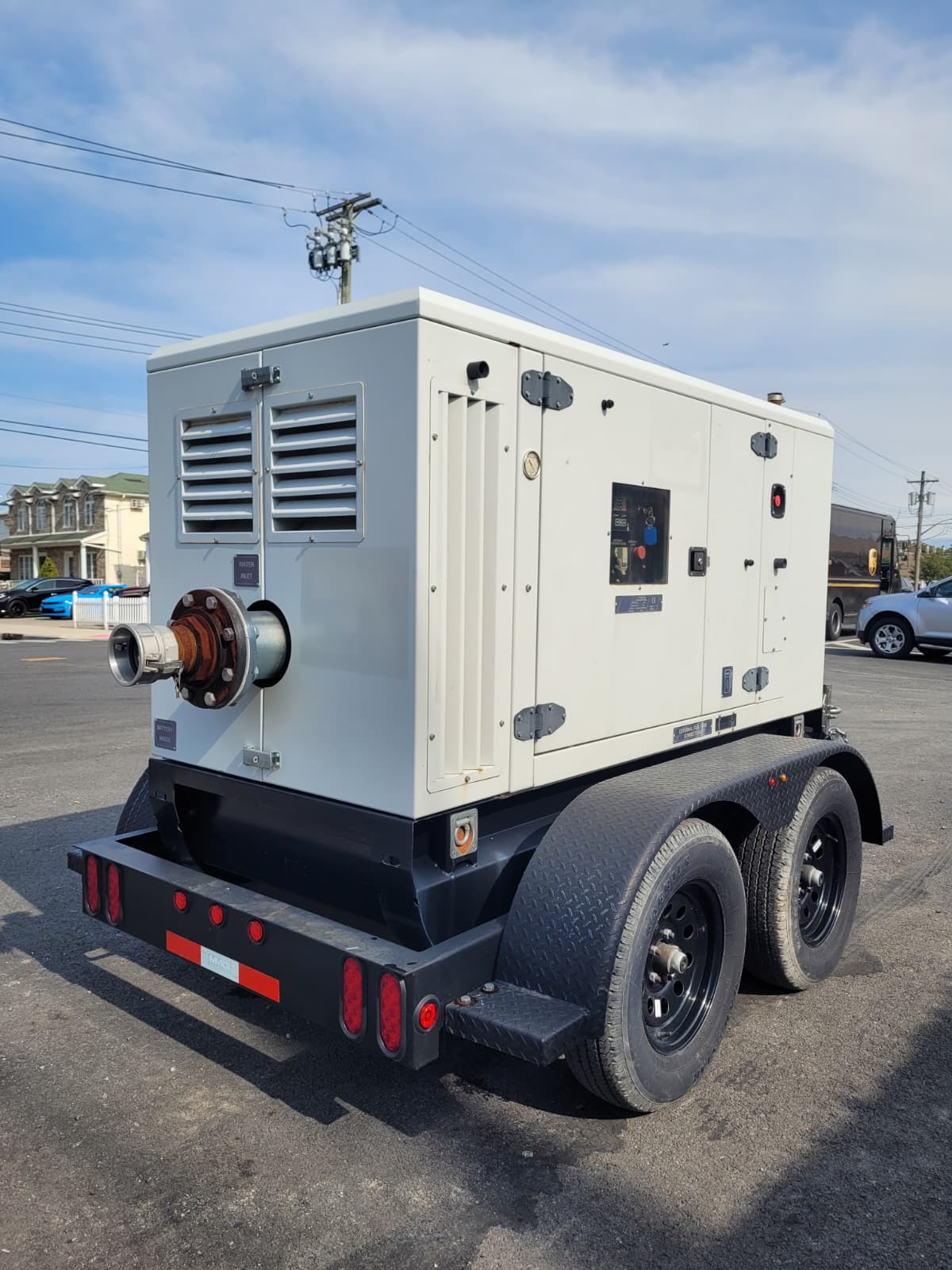

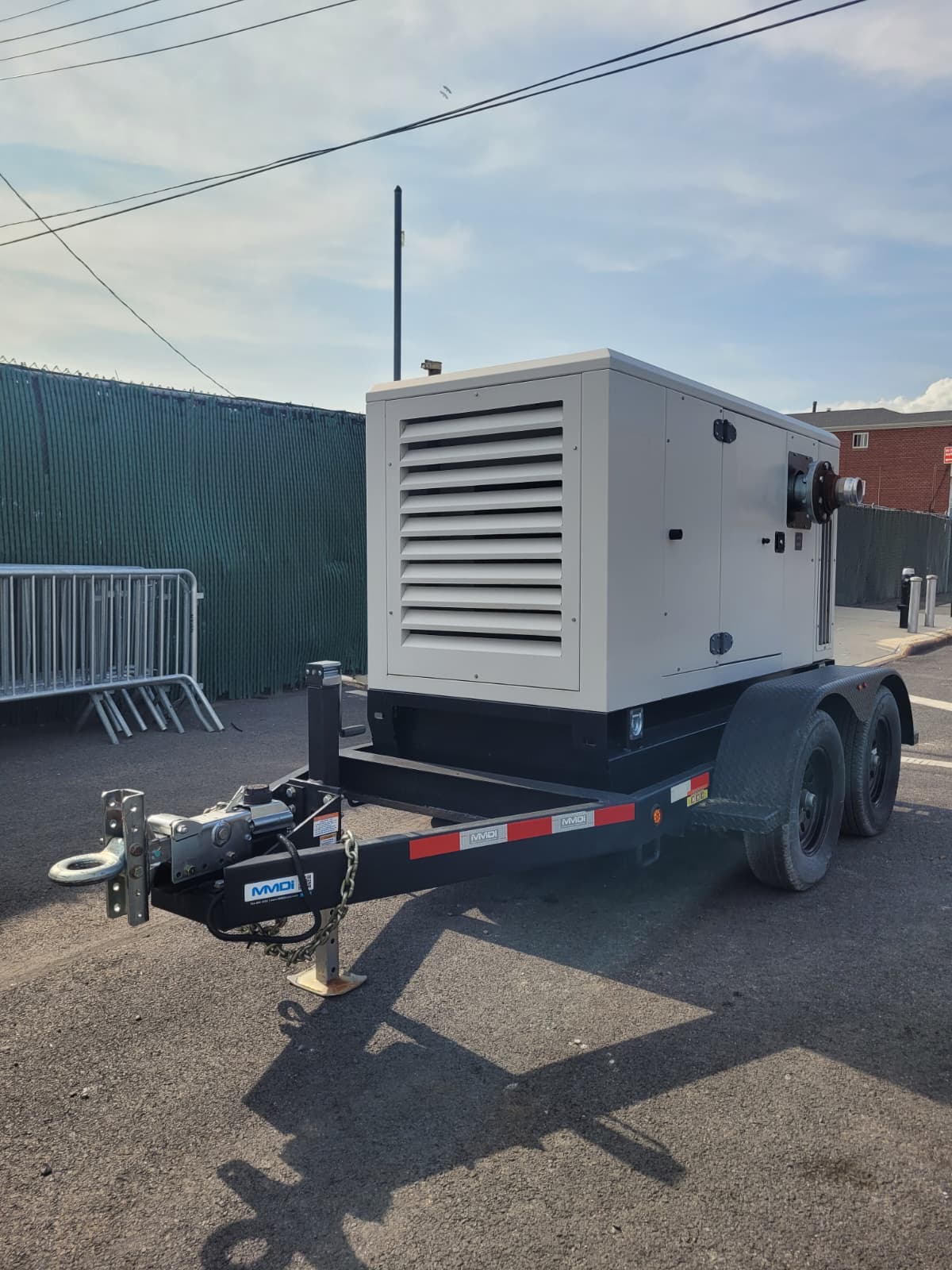

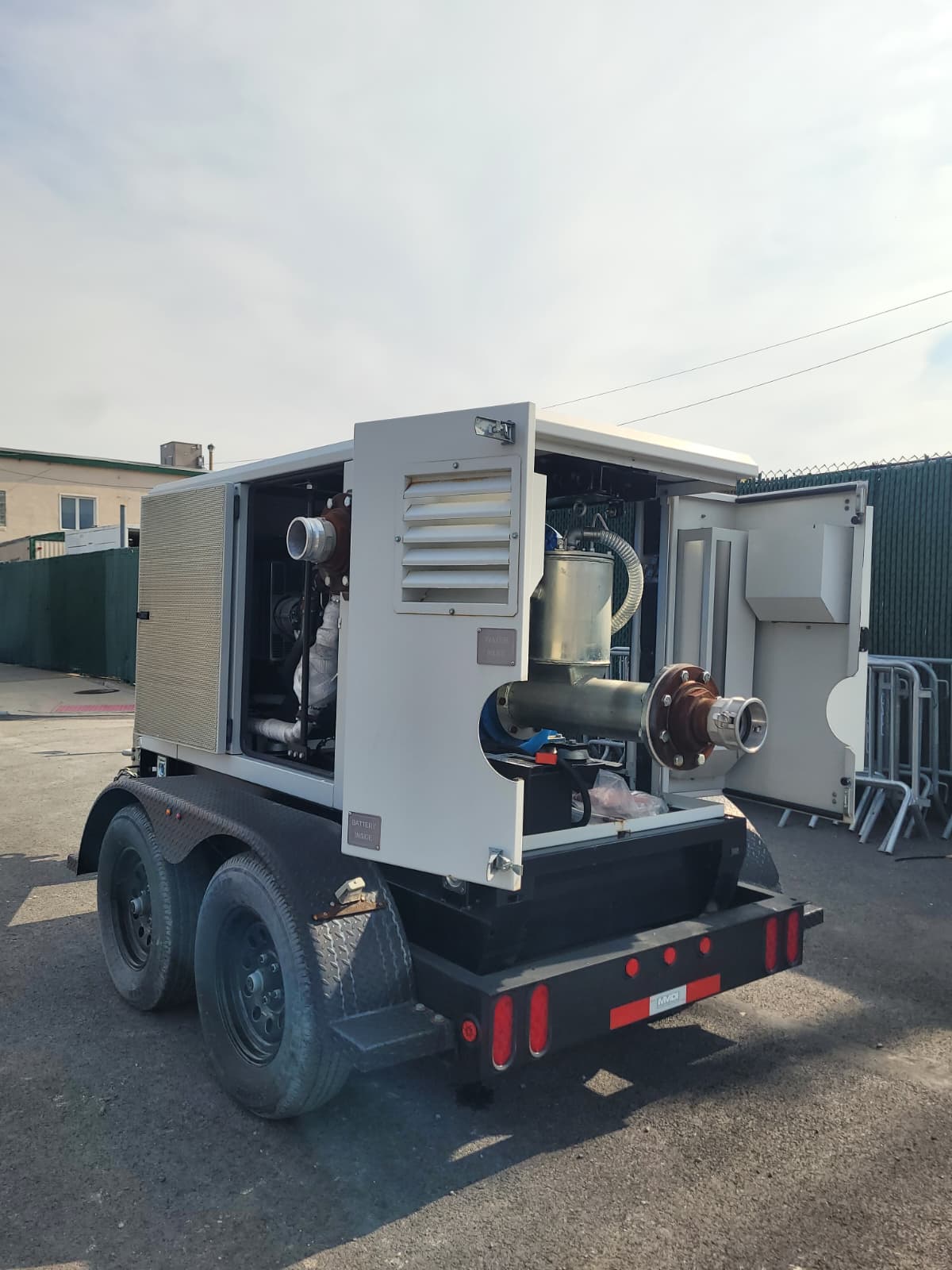

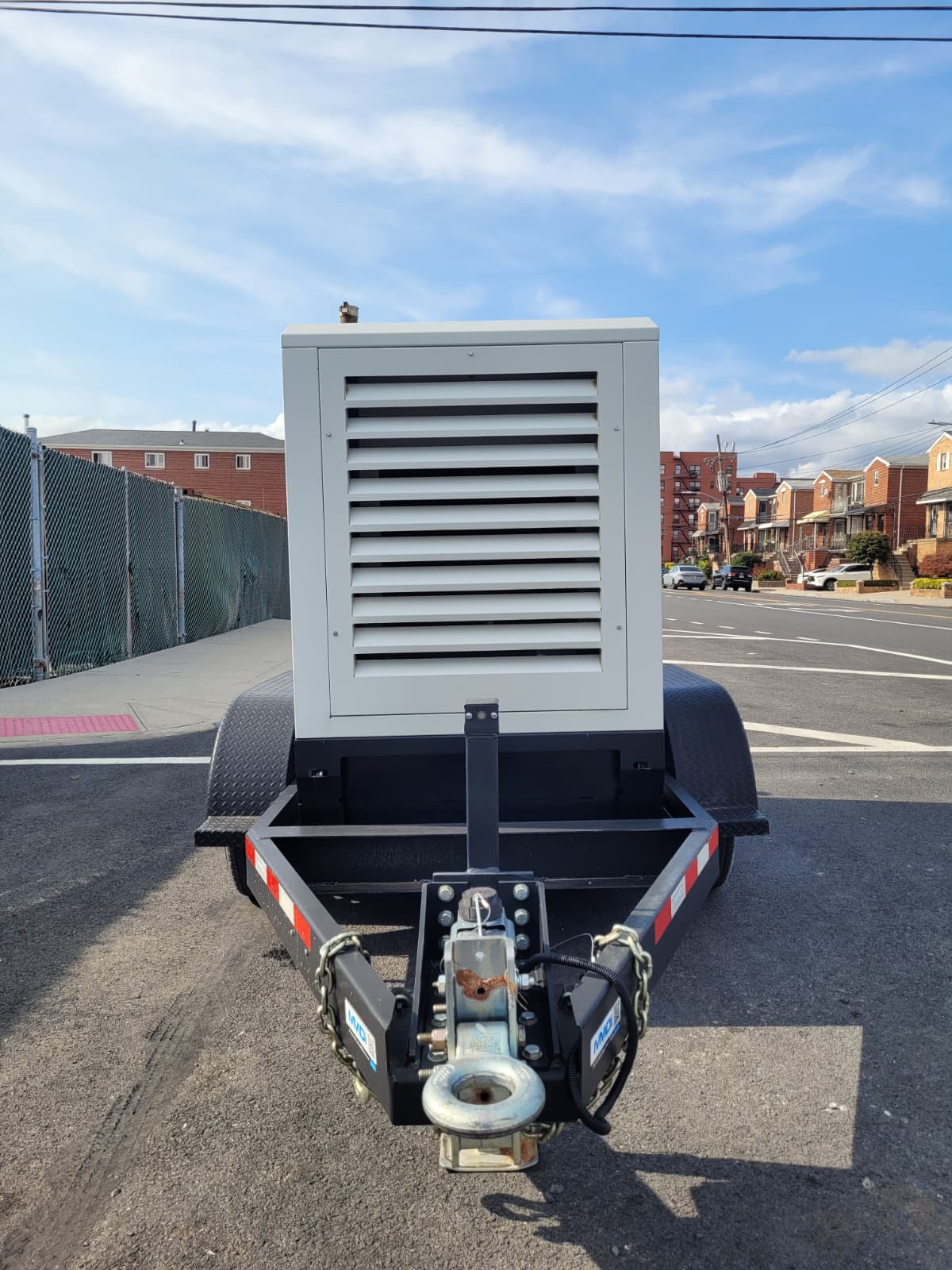

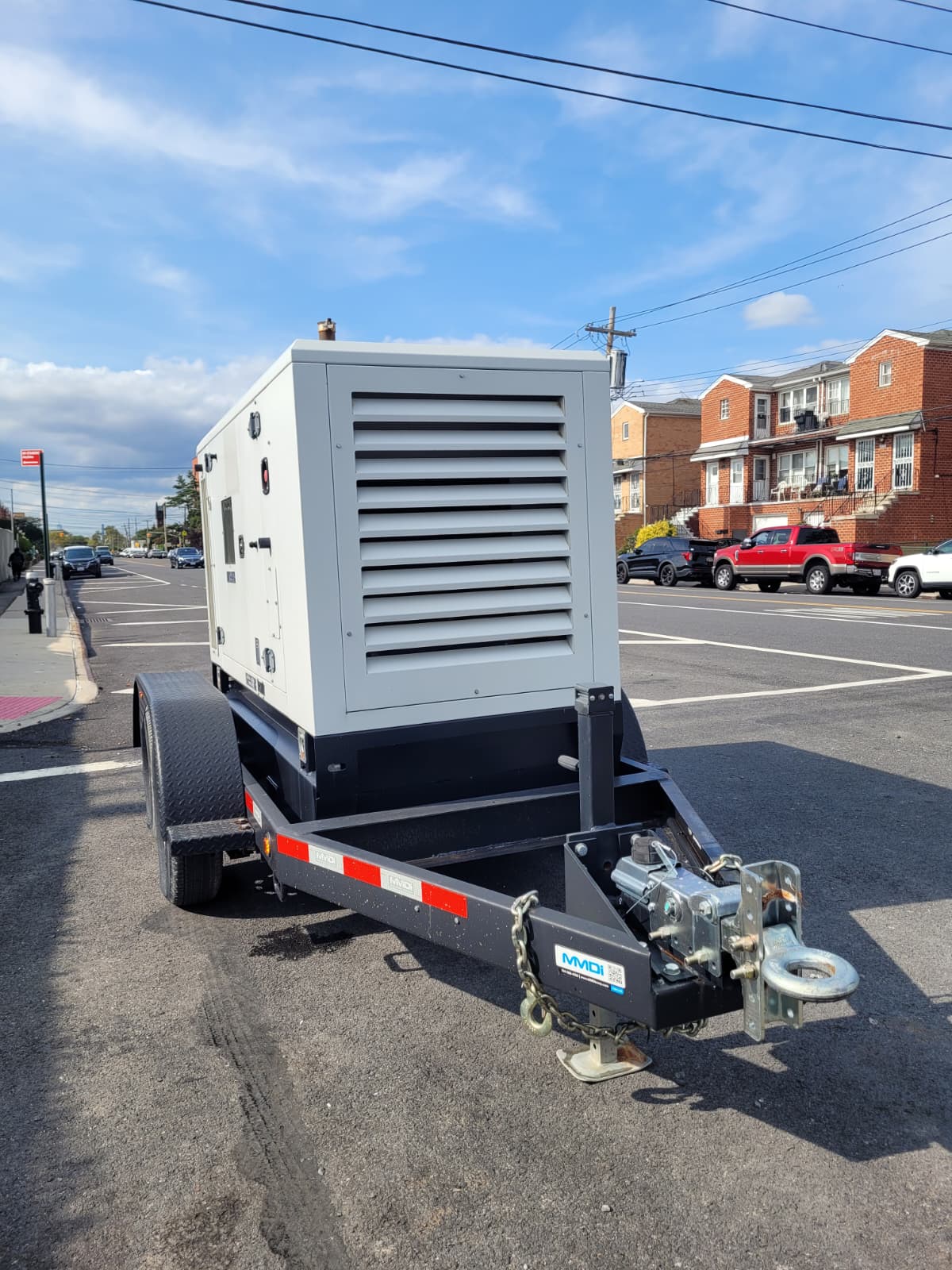

2020 FTG Equipment T-Pump 6K Self-priming Centrifugal Pump-Towable

Self-priming centrifugal pumps are used for pumping clear or dirty liquids with solids. Self-priming pumps are horizontal, one-stage, self-priming centrifugal with an open impeller handling large solids. These pumps are used in waste treatment, environmental protection, ship building, construction industry, civil engineering, agriculture and more.

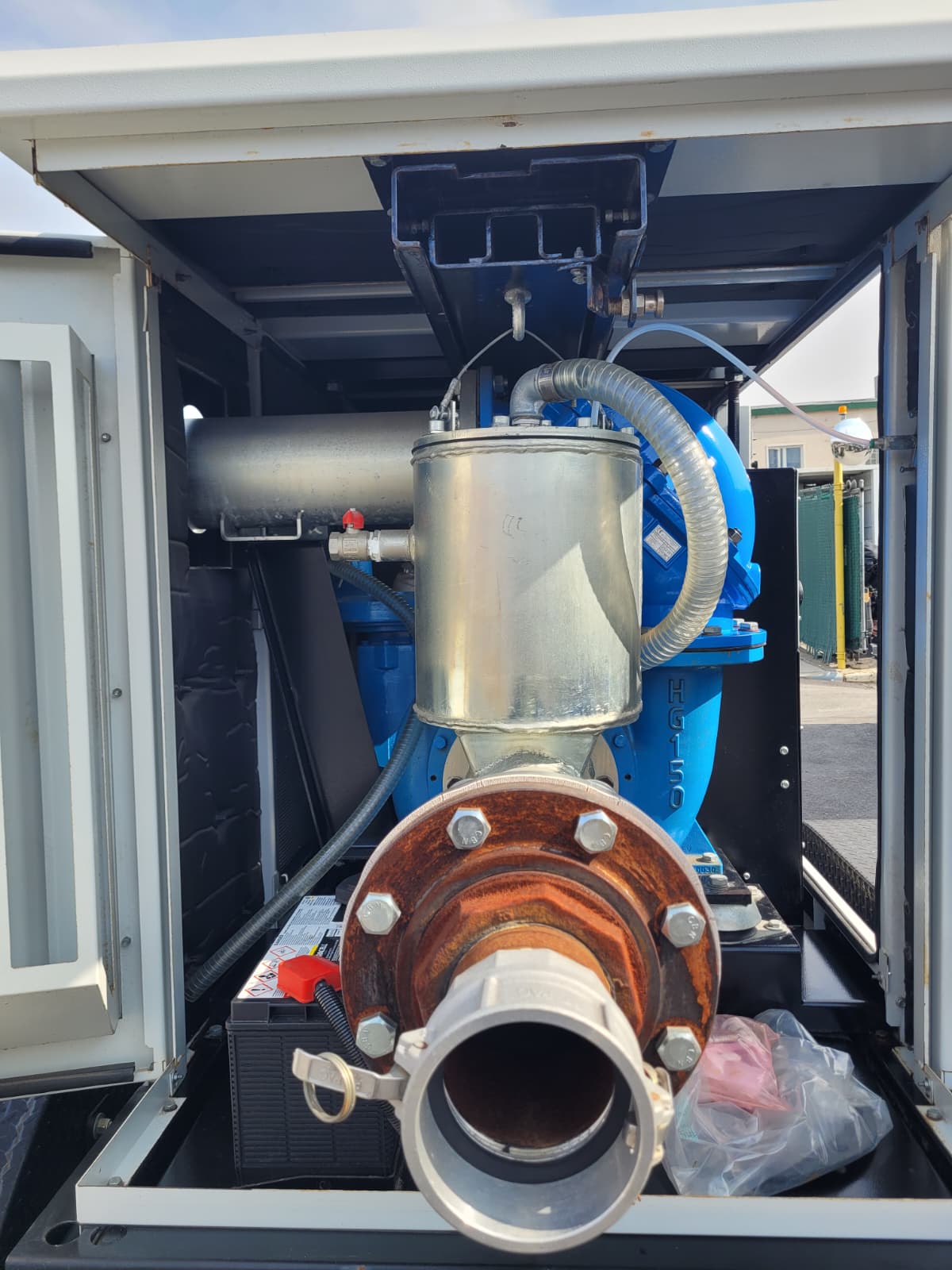

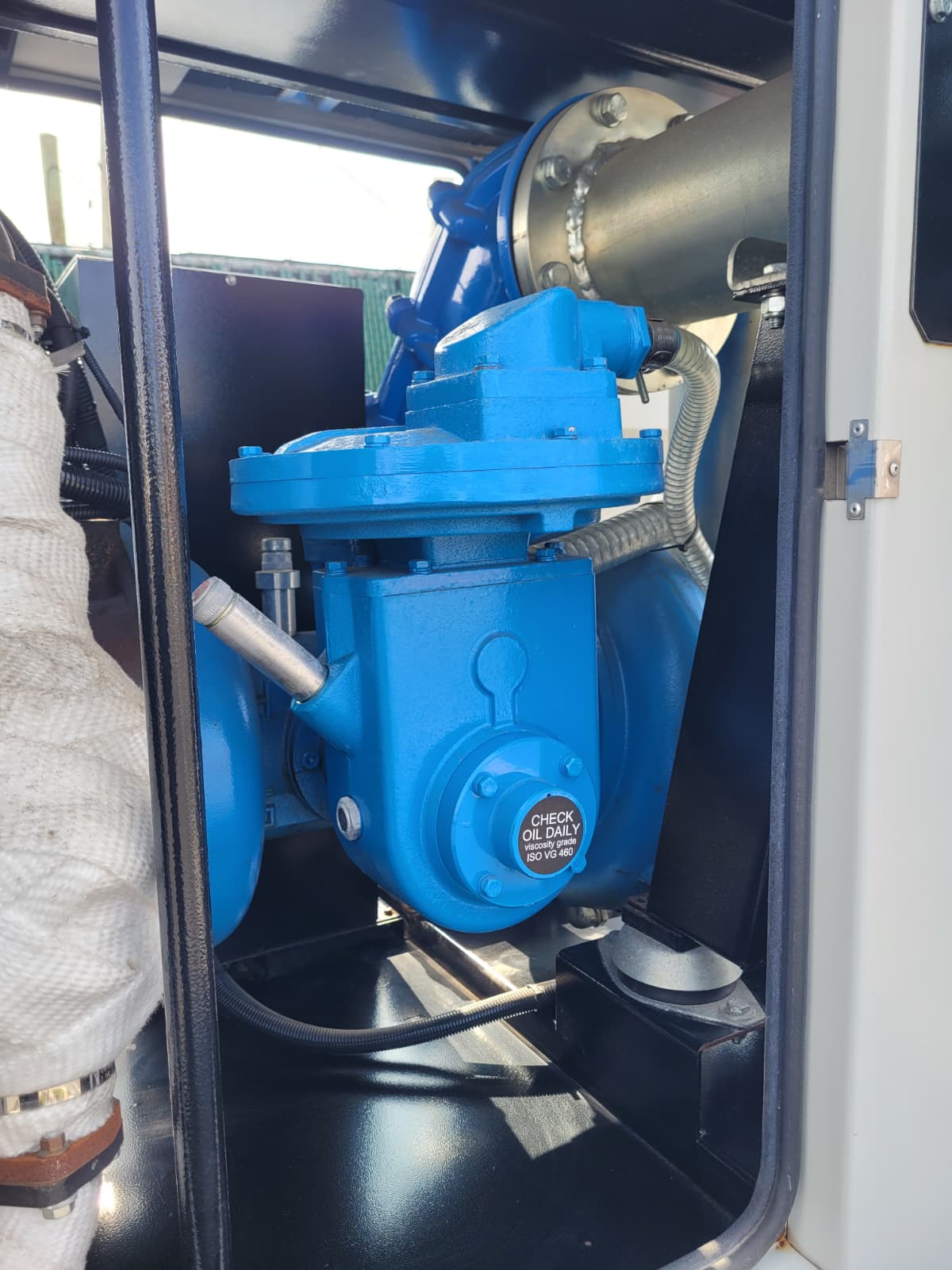

T-PUMP series primes and re-primes automatically thanks to a dry vacuum pump with 2,000 hours maintenance free guaranteed due to the investment in high quality diaphragm and valves utilized.
Dry running: all pumps are equipped with externally lubricated mechanical seals with hard faces. This is possible due to an oil bath system which provides constant lubrication to the mechanical seal. Lubrication prevents damage during dry running. This allows for totally dry running for indefinite periods while automatically priming and re-priming

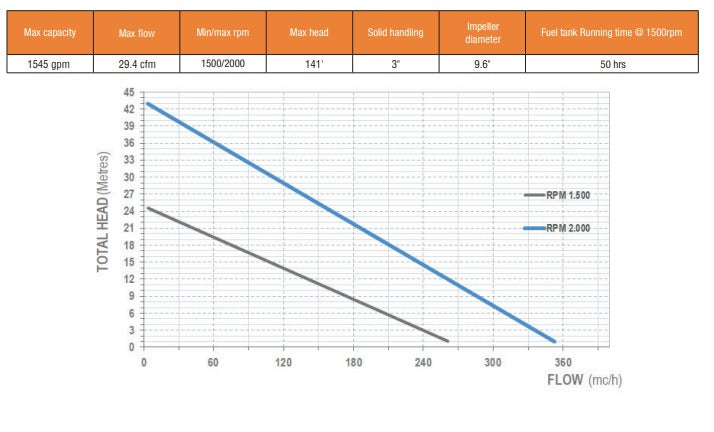

• Total Running Time @1500rpm 50 hrs

• Total Running Time @2000rpm 44 hrs

• Sound Level @ 23 Feet 65 dBA

• PH Flow 6 .5 - 8.5

• Type Vacuum Pump (cfm) 29.4

• Liquid Temperature - Max (F ) 158

• Density (lbs/gal) 9 .2
• Impeller Diameter 9.6-in

• Solids Handling 1.3-in

• Impeller Blades 2

• Suction Size   6-in

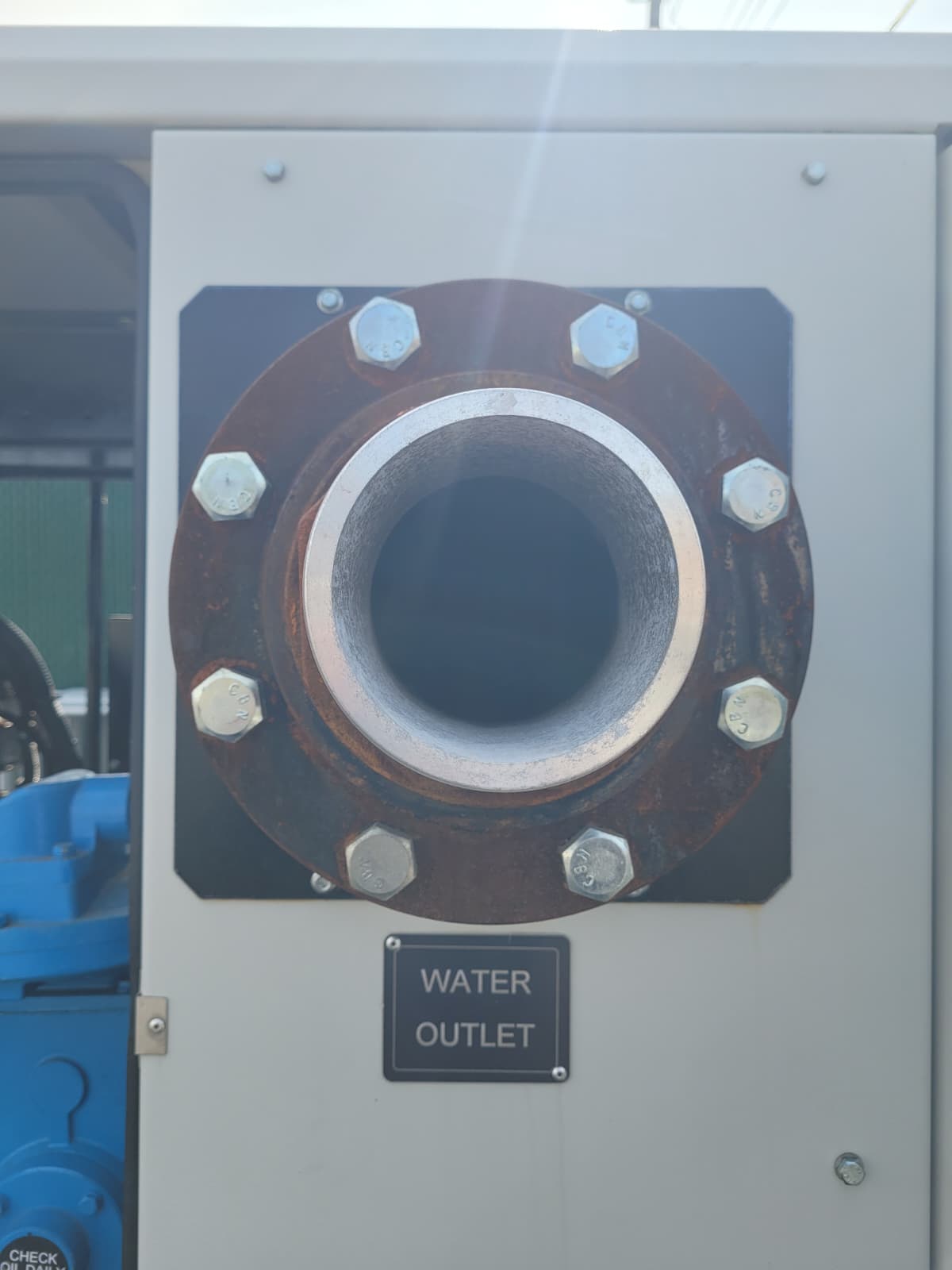

• Discharge Size  6-in

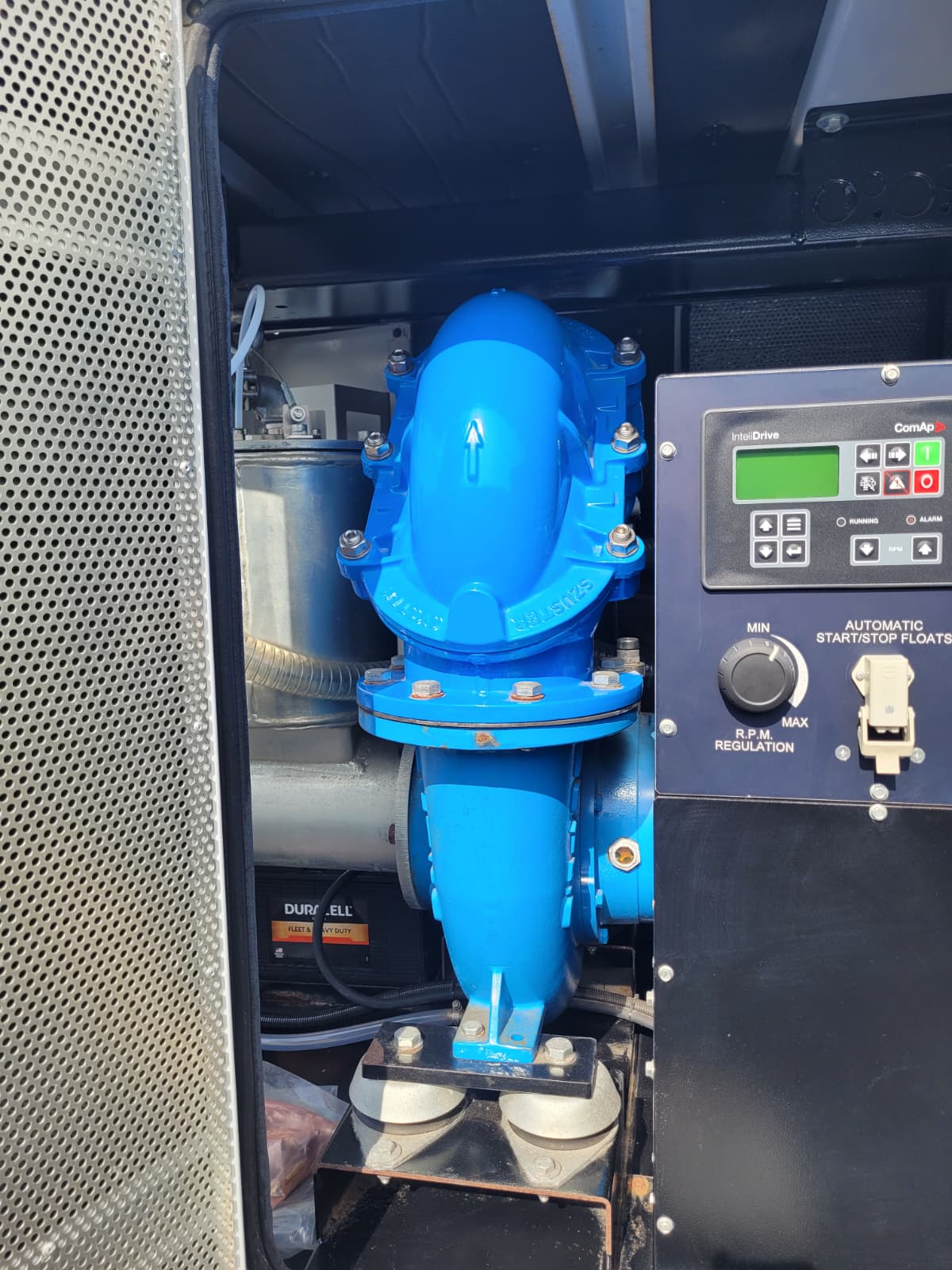

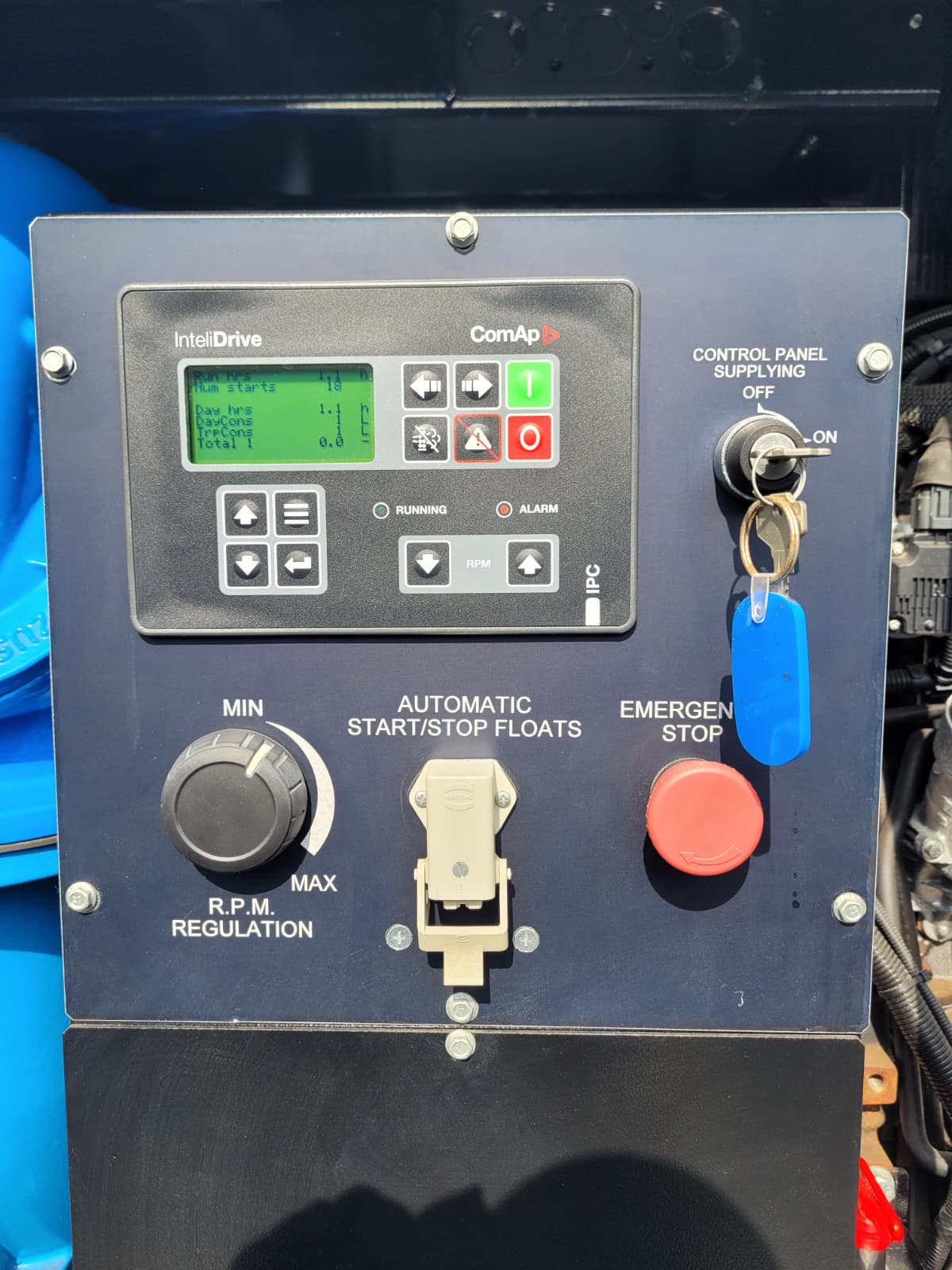

Front Panel Features

• ON/OFF starting key

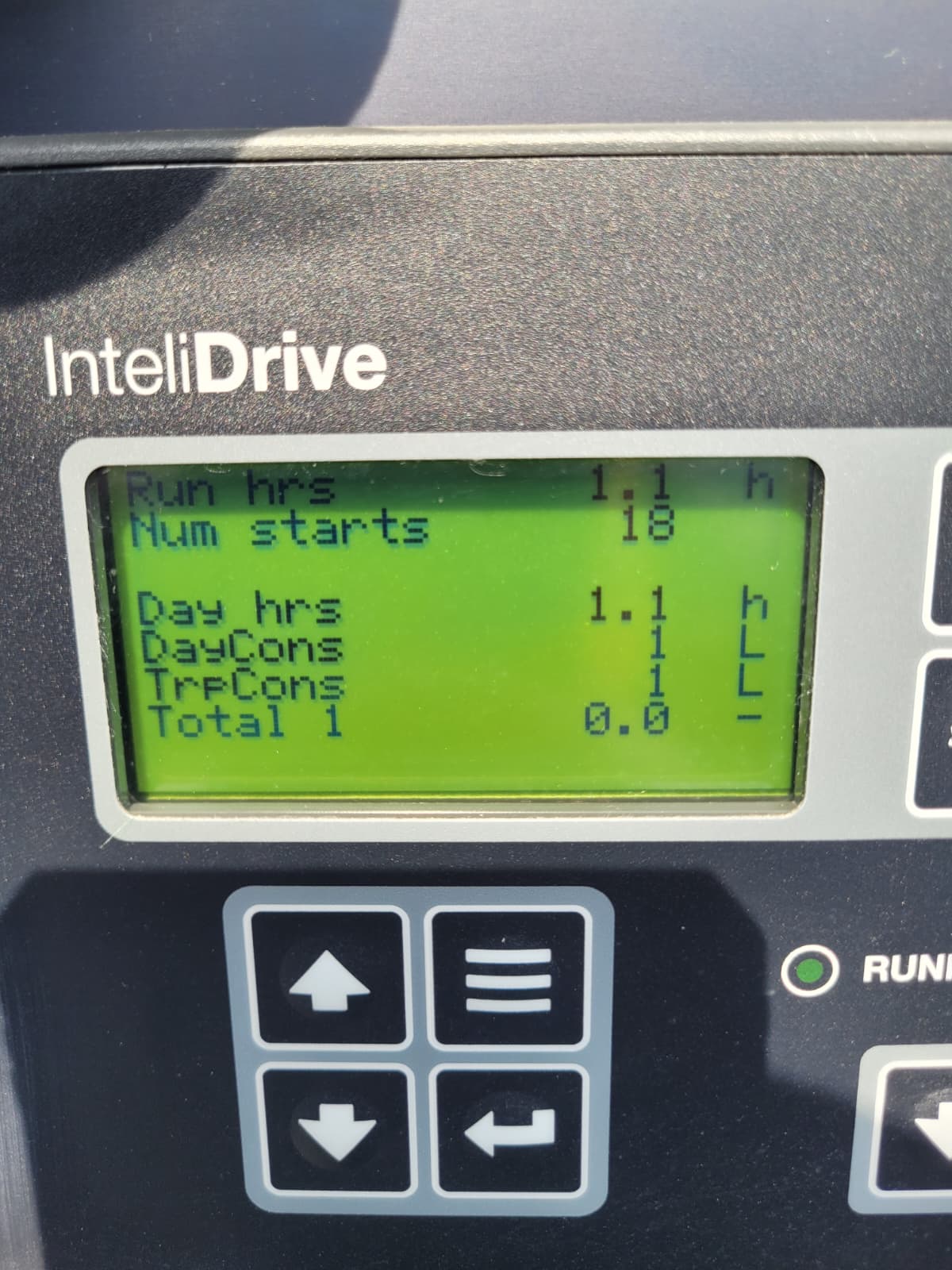

• Hour meter

• Fuel lever monitor

• Vacuum meter

• Manual regulation of engine speed

• Emergency stop button

• Battery charger

• Preheating signal lamp

• Auto start/ stop Comap controller specifically designed for
